Powercube Cabinet only – 18kWh
R0.00 Excl Vat
Powercube Battery system 4-6 module options available and is tailor made for larger residential and light commercial.
Contact us for more information.
TUV Certified
CEC Accredited
IP65 Protection
Flexible Expansion
Description
Features and advantages

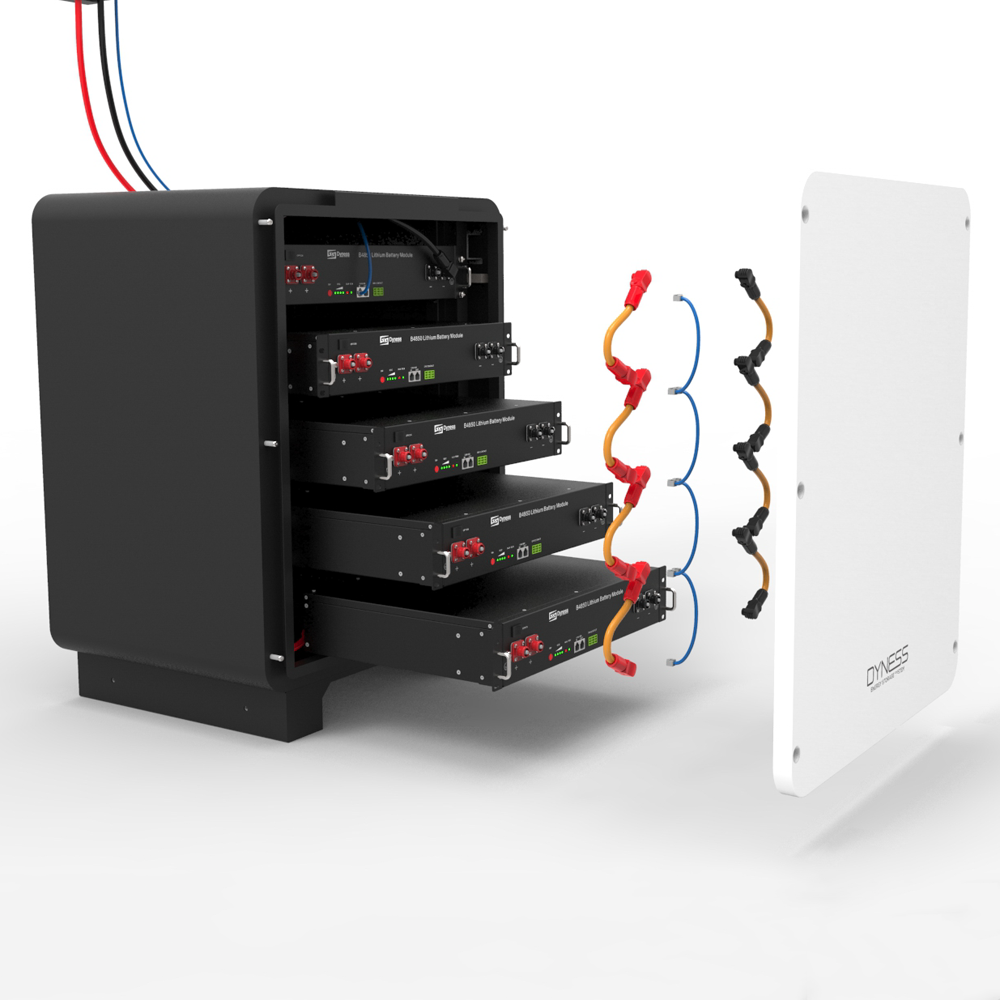

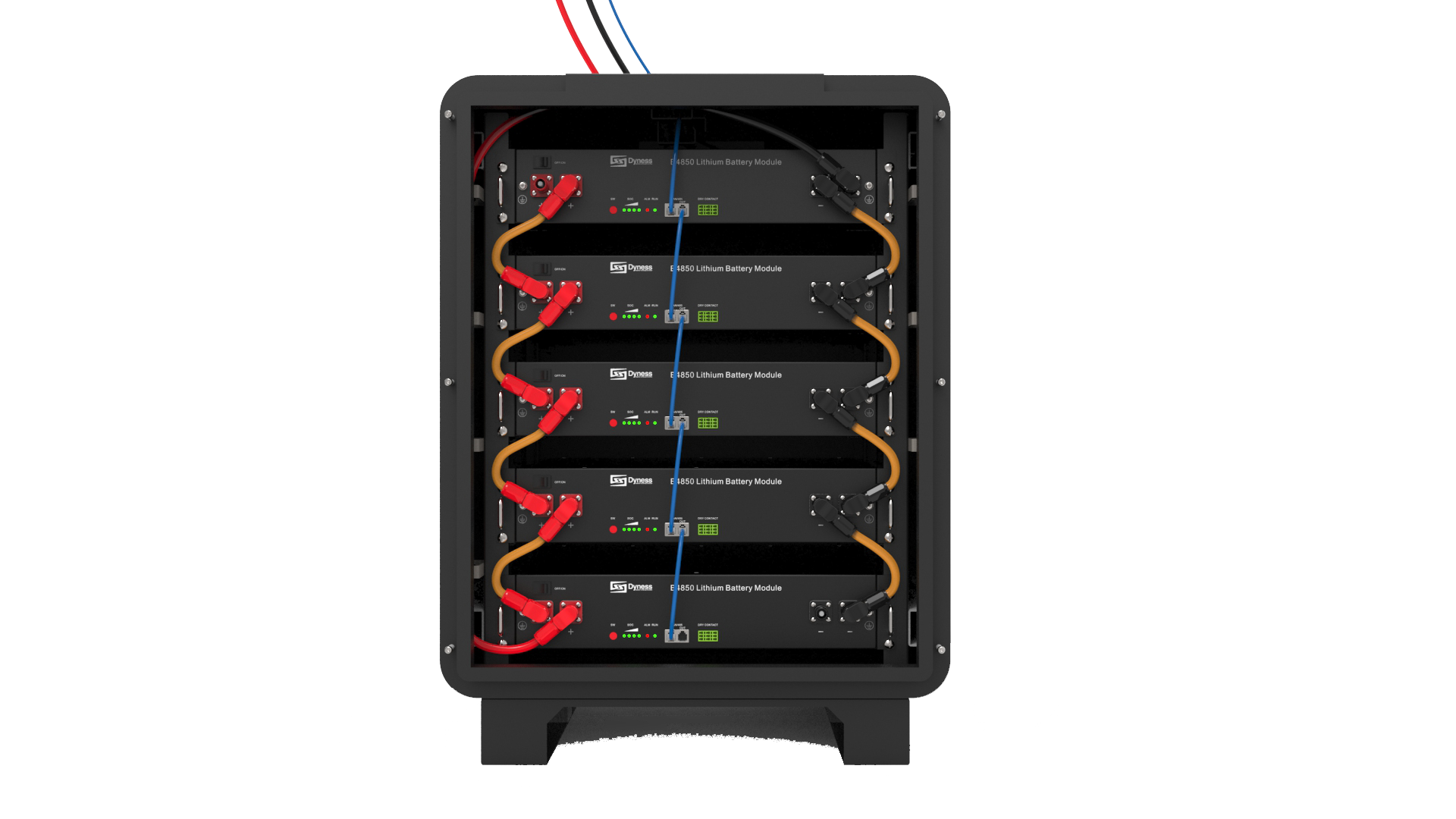

This cabinet has 5 shelves, which can house either B3 (48v75ah) or B4850 (48v50ah) modules. It comes standard with:
- Set of power cables.
- Set of power parallel cables.
- Set of communication cables.
| Model | Powercube |
| Battery Type | LiFePO4 |
| Battery Module | 5 Modules |
| Battery Capacity [Ah] | 400 |
| Nominal Battery Energy [kWh] | 18 |
| Working Voltage M | 40.5-54 |
| Operating Temp. Range [°C] | -20 ~50 |
| Calendar Life [Cycles] 111 | 6000 |
| Nominal Voltage M | 48 |
| Protection Level | IP65 |
| Communication | CAN I RS485 I DRY CONTACT |
| Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CEC Accredited |
| Scalabilitty [kWh] | Up to no limit |
| Compatible Inverters | Goodwe, Victron, lmeon, Solis, Luxpower, Growatt, GMDE, Sofar, Voltronic, Deye. More brands will be announced |
| Warranty | 10 Years |
| Warranty Document Supplied | Yes |
| Color | White |
| Alarms | Over-charge, Over-discharge, Over-current, Over-temperature, Short-Circuit |
| Pros | Can be used in both off-grid and hybrid setups, compact design, modular expansion |
| Monitoring & Protection | Each module has BMS. No DC breaker included. |
Additional information
| Modules | 4, 5, 6, 7, 8, 9 |
|---|
